Product Specifications

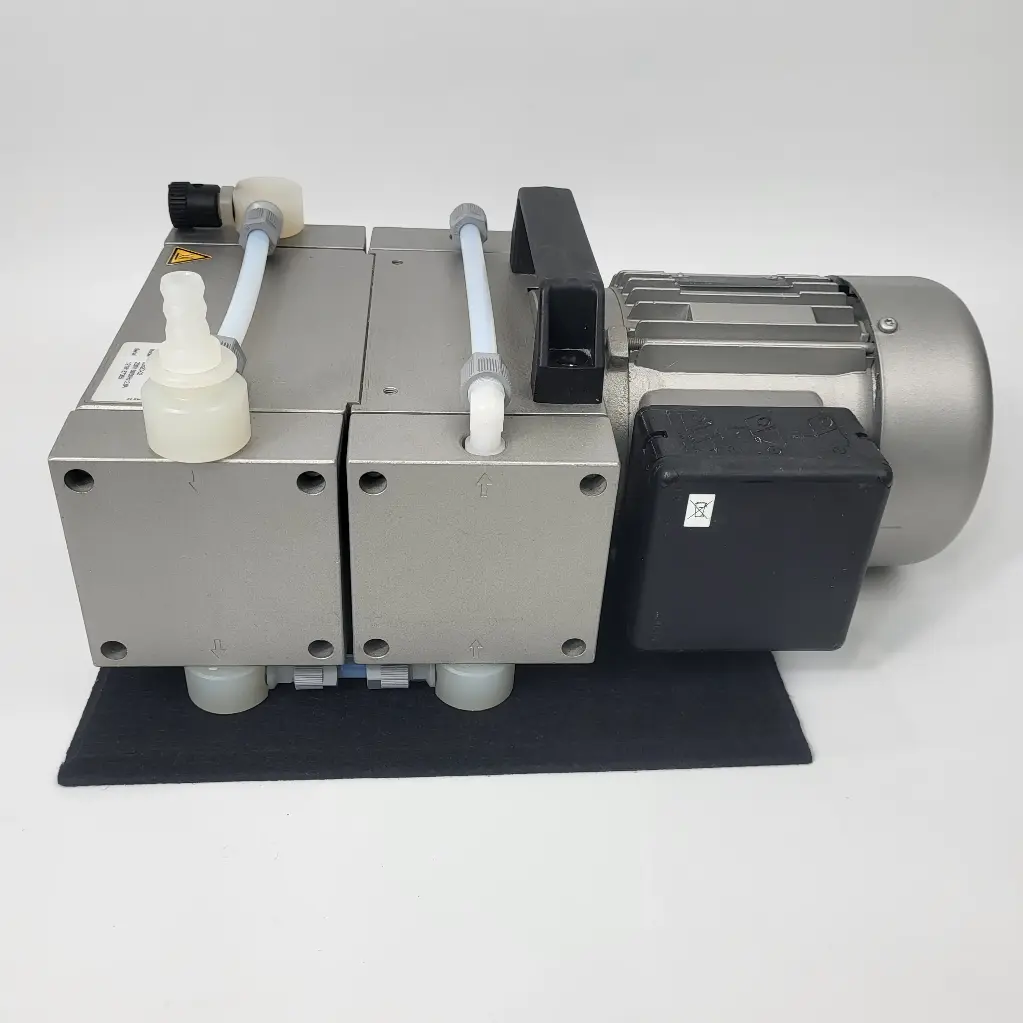

Model: 2052C-02
Technology: Three-Stage, Oil-Free Diaphragm Pump
Wetted Materials: PTFE-Coated Diaphragm, PTFE Heads, Perfluoroelastomer Valves
Free Air Displacement: 65 L/min (2.3 CFM)
Ultimate Pressure: 1.5 Torr (2 mbar)
Maximum Inlet/Outlet Pressure: 1 bar
Noise Level: <44 dB(A)
Power Consumption: 370 W
Voltage/Frequency: 230V, 50/60 Hz
Dimensions (W × D × H): 230 × 380 × 169 mm
Weight: 18.3 kg (40.3 lbs)
Inlet/Outlet Connections: Standard: DN 16 KF Flange; Optional: Hose Nozzle for 8 mm ID Tubing
Protection Class: IP54
Insulation Class: F (160°C)
Key Features:
- Chemical-Resistant Construction: PTFE-coated wetted surfaces and perfluoroelastomer valves ensure compatibility with aggressive solvents and corrosive gases.
- Oil-Free Operation: Eliminates the risk of oil contamination, ensuring a clean vacuum environment.
- Quiet Performance: Operates at noise levels below 44 dB(A), making it suitable for noise-sensitive environments.
- Integrated Gas Ballast Valve: Enhances performance and longevity when handling condensable vapors.
- Maintenance-Free Bearings: Reduces downtime and maintenance costs.
Ideal Applications:
- Rotary Evaporation
- Freeze-Drying (Lyophilization)
- Vacuum Filtration
- Vacuum Ovens
- Glove Boxes
- Vacuum Distillation
