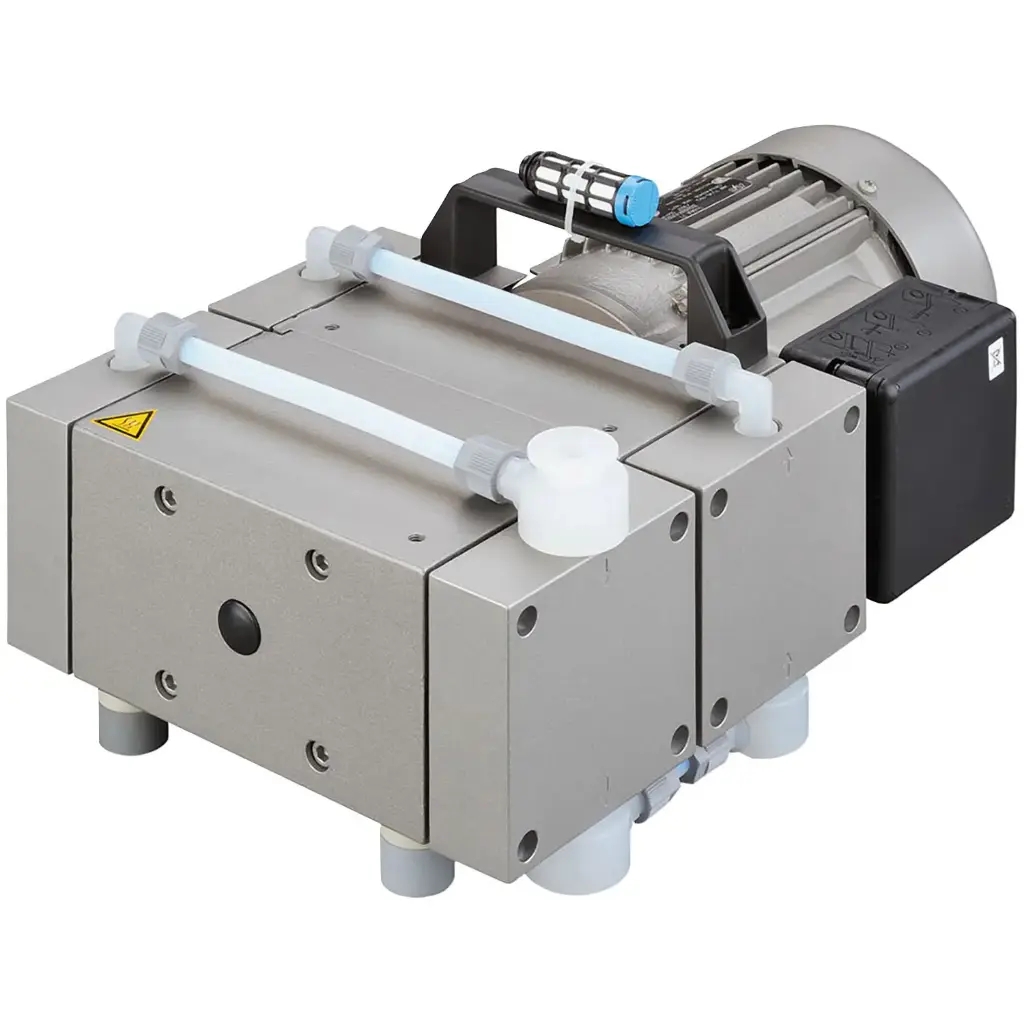

Product Specifications
Technical Specifications:
- Pumping Speed (60 Hz): 65 L/min (2.3 CFM)
- Ultimate Pressure: 1.5 Torr (2 mbar)
- Motor Power: 0.53 HP (0.37 kW)
- Inlet Connection: NW16 KF flange
- Exhaust Connection: ¼ inch OD
- Tubing Needed: ¼ inch ID
- Noise Level: Approximately 48 dB(A)
- Operating Temperature Range: 5°C to 40°C (41°F to 104°F)
- Cooling System: Air-cooled
- Weight: 18.2 kg (40.3 lbs)
- Dimensions (L × W × H): 230 mm × 380 mm × 180 mm (9.1 in × 15 in × 7.1 in)
- Power Supply: 115 VAC, 60 Hz, single-phase
- Motor Thermal Protection: Automatic thermal protection
- Certifications: CE, RoHS compliant
Key Features:
- Oil-Free Operation: Ensures a clean vacuum environment, eliminating the risk of oil contamination.
- Chemical-Resistant Design: All wetted parts are made of PTFE and other fluorinated plastics, suitable for corrosive gases and vapors.
- Quiet and Low Vibration: Operating at approximately 48 dB(A), suitable for noise-sensitive environments.
- User-Friendly Maintenance: Designed for quick and easy, infrequent maintenance with diaphragm replacement recommended every 10,000 operating hours.
- Versatile Applications: Ideal for vacuum ovens, rotary evaporators, concentrators, pilot plants, and vacuum filtration at multiple workstations.
Ideal Applications:
- Vacuum Ovens (>5 CF)
- Rotary Evaporators
- Concentrators
- Pilot Plants
- Vacuum Filtration at Multiple Workstations
- Vacuum Autoclaves
