Product Specifications
Technical Specifications:

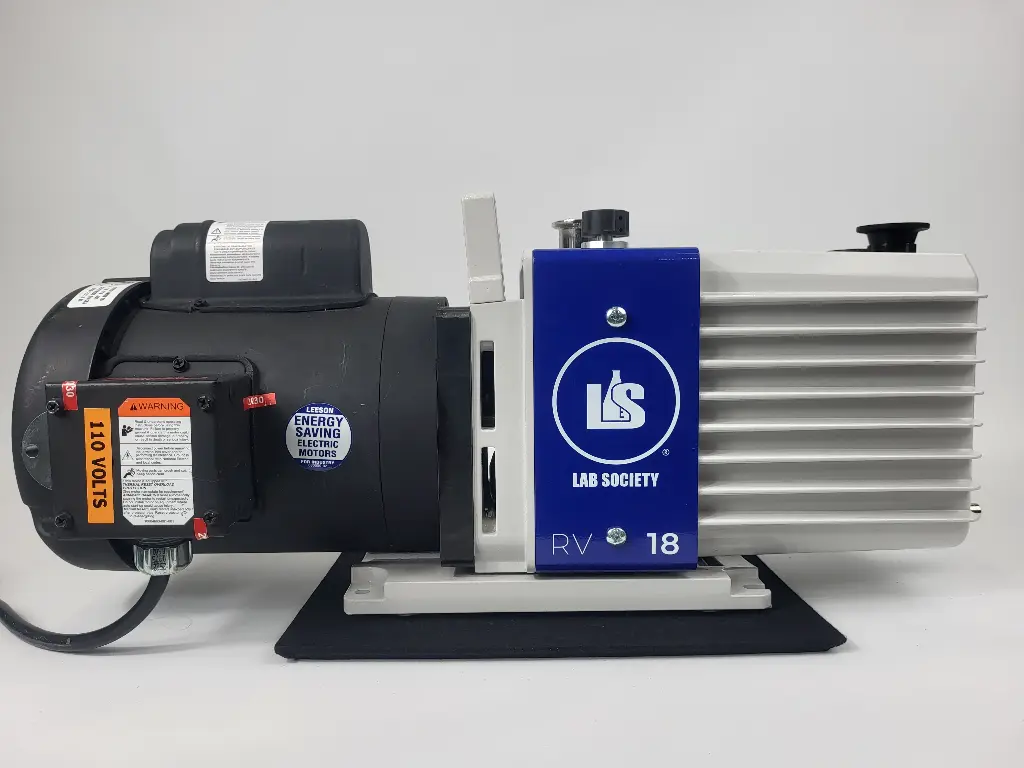

- Model: LS-RV-18-1
-
Pumping Speed:
- 60 Hz: 17.4 m³/h (10.2 CFM)
- 50 Hz: 14.4 m³/h (8.5 CFM)
-
Ultimate Pressure:
- With Gas Ballast Open: 4 x 10⁻² Torr
- With Gas Ballast Closed: 4 x 10⁻³ Torr
- Oil Capacity: 0.65 to 1.2 Liters
- Inlet & Outlet Flange: KF-25
- Voltage Options: 115V or 220V
- Motor Power: 0.55 kW (0.75 HP)
- Dimensions (L × W × H): 23" × 11" × 9"
- Weight: 74 lbs (33.6 kg)
- Certifications: CSA, ETL
Key Features:
- Oil-Sealed Two-Stage Design: Ensures deeper vacuum levels and efficient operation.
- Gas Ballast Valve: Helps expel harmful vapors, enhancing pump longevity.
- Anti-Suck-Back Protection: Prevents oil from entering the vacuum system during power loss.
- Oil Drain Valve: Facilitates easy draining and oil replacement.
- Compact Design: Space-saving footprint suitable for various laboratory environments.
Ideal Applications:
- Short Path Distillation
- Rotary Evaporation
- Freeze-Drying
- General Laboratory Vacuum Applications
- Industrial Processes Requiring Medium Vacuum Levels
