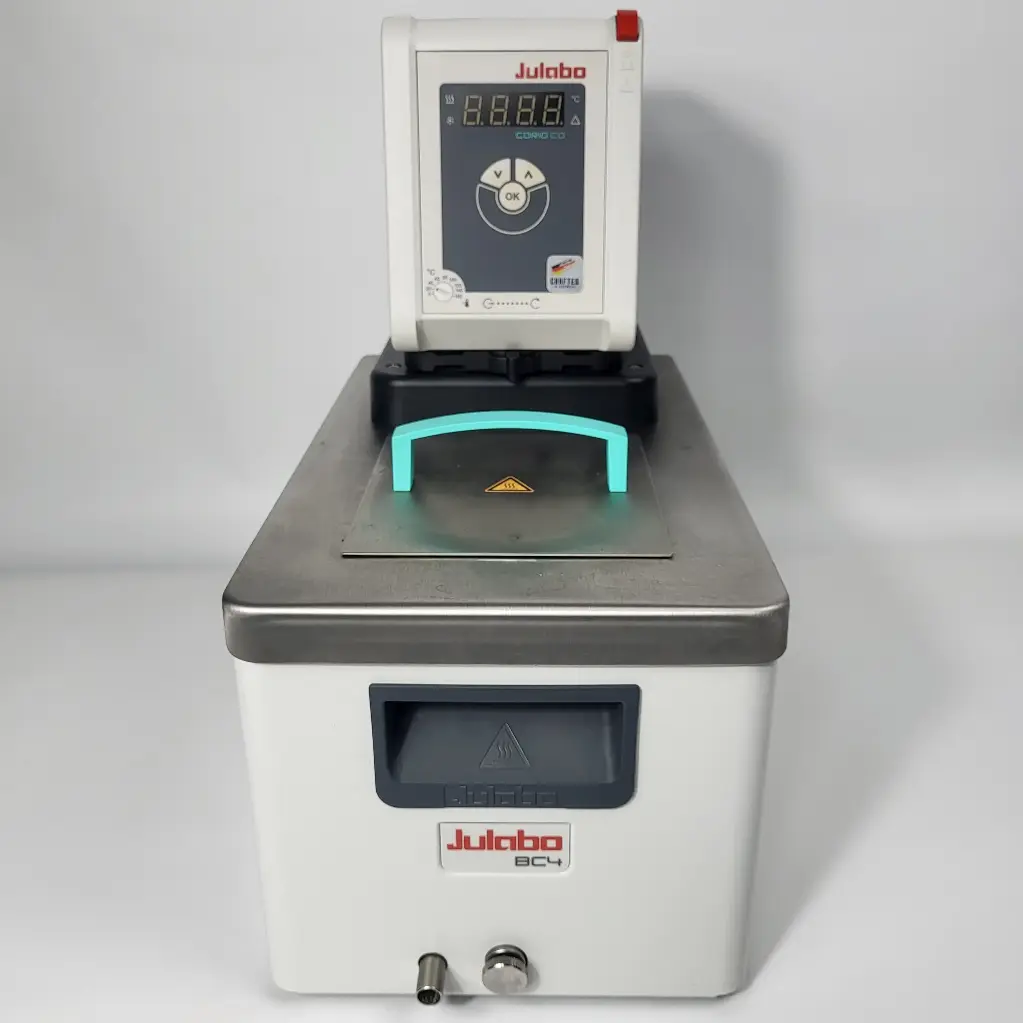

JULABO CORIO CD-BC4 Heating Recirculator (Pre-Owned)

Product Specifications

Technical Specifications:

• Working Temperature Range: +20 °C to +150 °C
• Temperature Stability: ±0.03 °C
• Heating Capacity: 2 kW
• Pump Capacity:
  • Flow Rate: 16–17 L/min
  • Pressure: 4.8–6.2 psi
• Bath Tank:
  • Material: Stainless steel
  • Usable Opening (W × L / D): 5.1 × 5.9 in / 5.9 in
  • Filling Volume: 3 to 4.5 L
• Dimensions (W × L × H): 9.1 × 16.1 × 16.5 in
• Weight: 19.4 lbs
• Pump Connections: M16×1 male
• Barbed Fittings: 8/12 mm inner diameter
• Power Supply: 230 V / 60 Hz
• Power Consumption: 10 A

Key Features:

• Dual Application: Suitable for both internal and external temperature control tasks.
• Integrated Cooling Coil: Facilitates counter-cooling for applications near or below ambient temperatures.
• User-Friendly Interface: Bright LED display with intuitive keypad for easy operation.
• USB Connectivity: Allows for external PC communication, control, monitoring, and data logging.
• High-Quality Construction: Features a stainless steel bath tank with integrated bath cover and drain tap.
• Efficient Pump System: Immersion pressure pump with easy switching between internal and external circulation via a front-mounted lever.
• Safety Features: Includes an early warning system for low liquid levels and lockable power plug for secure connections.

Ideal Applications:

• Chemical synthesis
• Pharmaceutical processes
• Biological research
• Quality control testing
• Material testing
