Product Specifications
Technical Specifications:

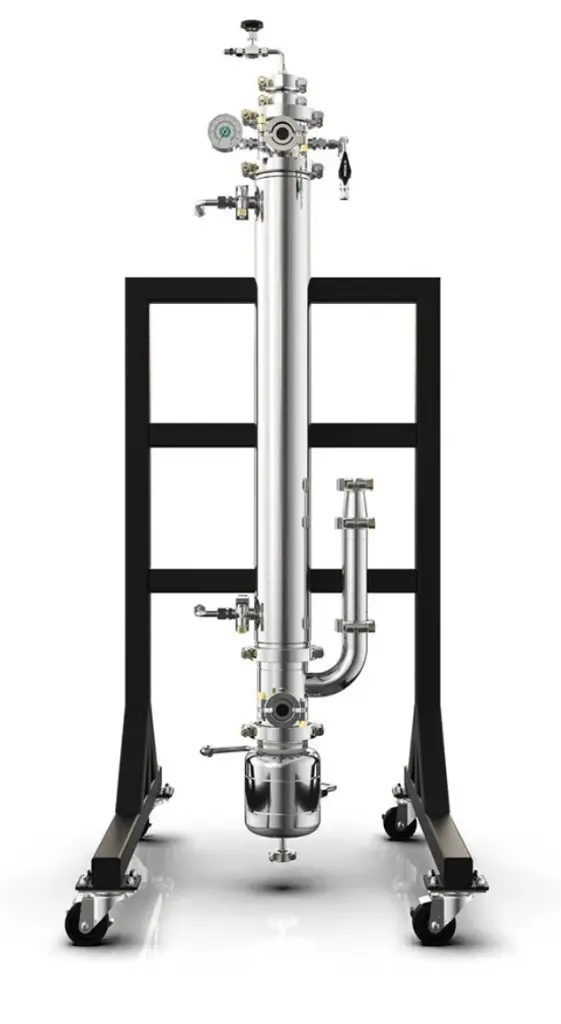

- Model: Precision HDU (Hydrocarbon Distillation Unit)
- Process Type: Hydrocarbon-based post-processing & purification
- Capacity: 5–20 lbs per batch (material dependent)
- Solvent Compatibility: Butane, Propane, Isobutane, and blend-compatible
- Distillation Type: Closed-loop fractional distillation
- Boiling Vessel: 10L–20L jacketed stainless steel (316L) boiling flask
- Condensation System:
- Vertical jacketed condensing column
- Cold trap with high-efficiency solvent recovery coil
- Fractionation: Multi-stage with packed columns and visual fraction sight glasses
- Vacuum Capability: Deep vacuum < 10 microns (external vacuum pump required)
- Temperature Range: -80°C to +150°C (via external chillers/heaters)
- Pressure Rating: -30 inHg to +100 PSI (hydrocarbon-safe)
- Control Interface:
- Digital PID controllers for all thermal zones
- Pressure & vacuum gauges
- Manual & automated valve options
- Material Construction:
- 316L sanitary stainless steel
- High-clarity borosilicate glass components
- High-temp Viton or PTFE gaskets
- Safety Features:
- C1D1/C1D2 compliant design
- Integrated PRVs, rupture discs, grounding clamps
- Explosion-proof rated instrumentation
- Dimensions (W × D × H): Approx. 60" × 36" × 84" (152 cm × 91 cm × 213 cm)
- Weight: ~450 lbs (204 kg)
- Electrical Requirements: 120 V / 240 V (for heating/cooling controls)
- Certifications: ASME-certified pressure vessels, UL-rated controls
Key Features:
- High-Purity Separation: Distills and refines hydrocarbon-extracted oils into terpene-rich fractions and cannabinoid distillate.
- Efficient Recovery: High-yield solvent recovery and cold-condensation reduce loss and cost.
- Industrial Design: Precision-crafted system engineered for GMP, lab-scale, or commercial production.
- Modular Integration: Can be combined with CRC skids, chillers, or centrifuge systems.
- Operator Safety: Built to meet the strictest safety codes for Class 1 Division 1 operation zones.
Ideal Applications:
- Purification of hydrocarbon extracts (BHO, PHO)
- Fractional distillation of cannabinoids and terpenes
- Removal of residual solvent and waxes
- Post-processing for vape, edibles, or isolation
- Inline integration with Precision X10 or PX30 systems
