Product Specifications
Technical Specifications:

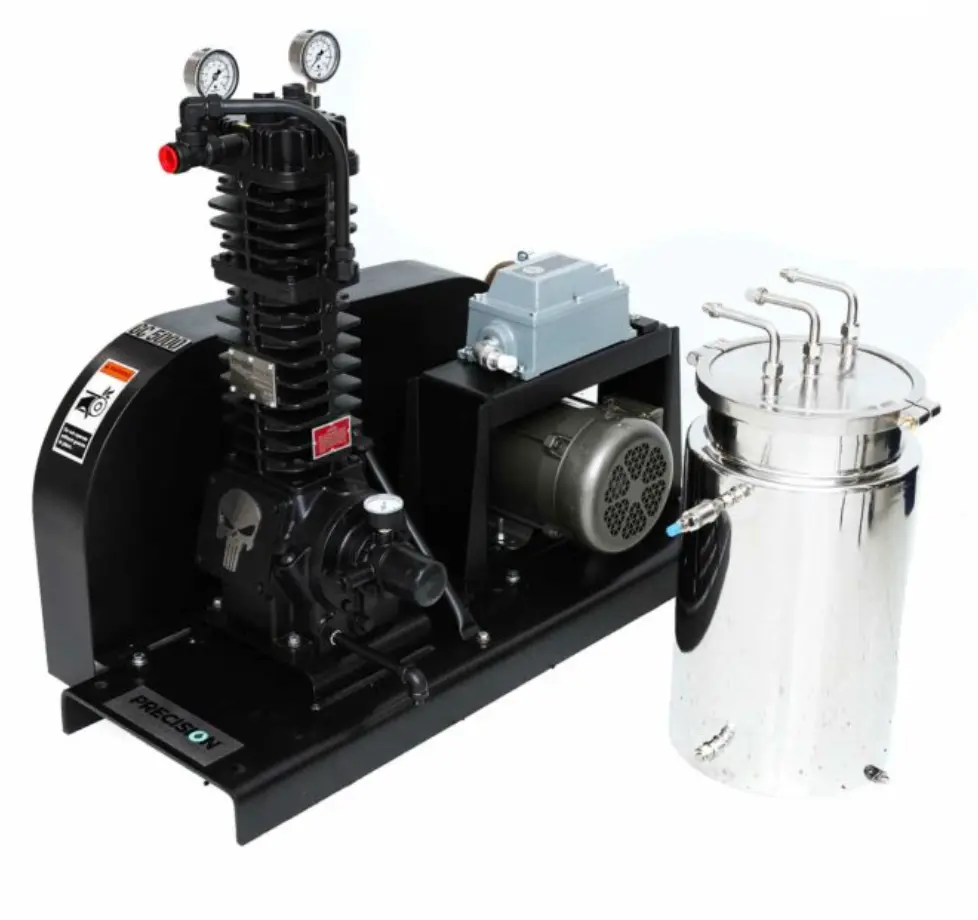

- Model: GC 5000
- Compressor Type: Oil-Free, Reciprocating Gas Compressor
- Stages: 2-Stage Compression
- Capacity: Up to 5,000 PSI (345 Bar) final pressure
- Flow Rate: Approx. 8–15 SCFM (varies by gas and configuration)
- Compatible Gases: Air, Nitrogen, Methane, CO₂, Argon, and other inert/non-corrosive gases
- Cooling System: Air-cooled (optional water-cooled upgrade available)
- Lubrication: Oil-free design with PTFE piston rings
- Construction: Cast aluminum alloy crankcase; stainless steel wetted parts
- Starter Type: NEMA 7 Explosion-Proof Starter Box (Class I, Division 1, Groups C & D)
- Control System: Manual or optional PLC with pressure sensors and automatic shutdown
- Dimensions (W × D × H): 30" × 42" × 48" (76.2 cm × 106.7 cm × 121.9 cm)
- Weight: ~600 lbs (272 kg)
- Drive Motor: 7.5 HP TEFC (Totally Enclosed Fan Cooled) or Explosion-Proof Motor
- Power Requirements: 230/460 VAC, 3-phase, 60 Hz
- Safety Features:
- Pressure relief valves
- Thermal overload protection
- Emergency stop button
- Certifications:
- ASME pressure components
- NEMA 7 explosion-proof enclosure
- OSHA compliant electrical components
Key Features:
- High Pressure Capability: Delivers up to 5,000 PSI for industrial or lab-grade gas compression.
- Explosion-Proof Control: NEMA 7 starter box ensures safe operation in hazardous environments.
- Durable Build: Corrosion-resistant wetted parts for long life in gas service.
- Oil-Free Operation: Suitable for oxygen-sensitive applications and clean gas compression.
- Turnkey Installation: Ready-to-run skid with motor, starter, and safety valves included.
Ideal Applications:
- Gas transfer in extraction or refinery operations
- Pressure boosting for gas cylinders or buffer tanks
- Laboratory and pilot plant testing
- Nitrogen and air bottle filling
- Oil & gas industry instrumentation support
