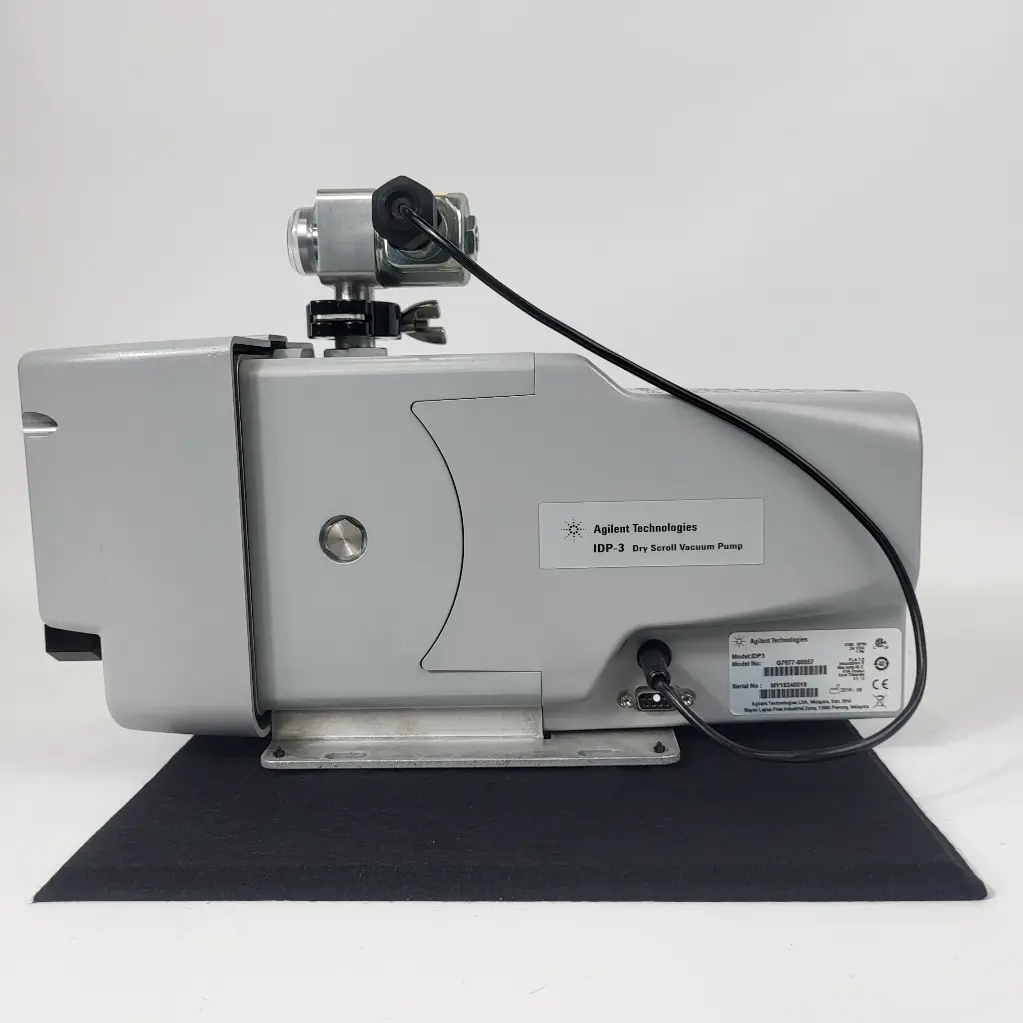

Product Specifications
Technical Specifications:
-
Pumping Speed:
- 60 Hz: 60 L/min (3.6 m³/h, 2.1 CFM)
- 50 Hz: 50 L/min (3.0 m³/h, 1.8 CFM)
- Ultimate Pressure: 2.5 x 10⁻¹ Torr (3.3 x 10⁻¹ mbar)
- Motor Power: 0.16 HP (120 W)
-
Operating Speed:
- 60 Hz: 3,200 RPM
- 50 Hz: 2,600 RPM
- Inlet Connection: NW16 KF flange
- Exhaust Connection: ¼ inch female NPT (10 mm hose barb provided)
- Gas Ballast Connection: ¼ inch female NPT (shipped with port plug installed; 20 µm sintered filter provided)
- Maximum Inlet Pressure: 1.0 atmosphere (0 psig)
- Maximum Outlet Pressure: 1.4 atmosphere (6.5 psig)
- Leak Rate (with exhaust sealed): < 1 x 10⁻⁶ sccs helium (1 x 10⁻⁶ mbar·l/s)
- Noise Level: 55 dB(A)
- Vibration Level at Inlet: 5 mm/s RMS
- Operating Temperature Range: 5°C to 40°C (41°F to 104°F)
- Storage Temperature Range: –20°C to 60°C (–4°F to 140°F)
- Cooling System: Air-cooled
-
Weight:
- Pump Only: 9.5 kg (21 lbs)
- Shipping Weight: 10.5 kg (23 lbs)
- Dimensions (H × W × L): 181 mm × 140 mm × 358 mm (7.13 in × 5.5 in × 14.09 in)
-
Power Supply:
- 100–120 VAC or 200–240 VAC, 50/60 Hz, single-phase
- 24 VDC option available with speed control via 0–10 V signal
- Motor Thermal Protection: Automatic thermal protection
- Hour Meter: Integral hour meter provided
- Certifications: EN 61010-1, EN 61326-1 Class A, CE, RoHS compliant
Key Features:
- Oil-Free Operation: Ensures a clean vacuum environment, eliminating the risk of oil contamination.
- Compact and Lightweight Design: Facilitates easy integration into OEM systems and laboratory setups.
- Hermetic Sealing: Fully isolated motor and bearings enhance reliability and reduce maintenance.
- Quiet and Low Vibration: Operating at 55 dB(A) with minimal vibration, suitable for noise-sensitive environments.
- User-Friendly Maintenance: Single-sided scroll design allows for quick tip seal replacement, minimizing downtime.
- Versatile Applications: Ideal for backing small turbo pumps, analytical instruments, and various laboratory applications.
Ideal Applications:
- Mass Spectrometry (e.g., GC/MS, LC/MS, ICP-MS)
- Electron Microscopy (SEM, TEM)
- Surface Analysis
- Vacuum Coating Processes
- General Laboratory Vacuum Applications
- OEM Integration into Analytical Instruments
