Product Specifications
Technical Specifications:

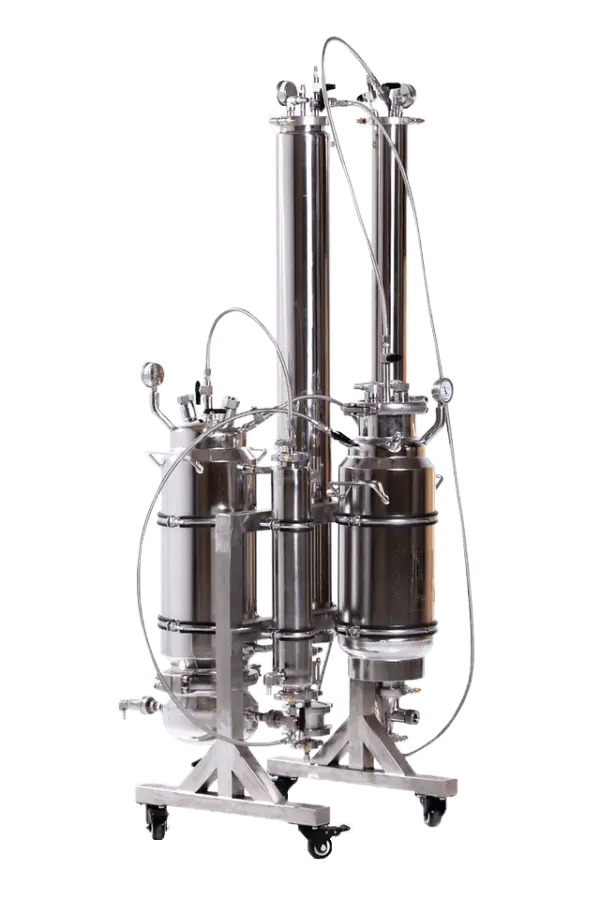

- Model: PX1 Hydrocarbon Extraction System
- Extraction Type: Closed-Loop Hydrocarbon Extraction (Butane/Propane)
- Processing Capacity: Up to 5 lbs (2.3 kg) of biomass per batch
- Solvent Compatibility: Butane, Propane, or Blend (BHO extraction)
- Solvent Recovery Rate: Up to 99% recovery efficiency
- Cycle Time: 30–60 minutes per extraction cycle
- Operating Pressure Range: Full vacuum to 150 PSI
- Material Contact Surfaces: 304 Stainless Steel, PTFE, Borosilicate Glass
- Sight Glasses: High-clarity borosilicate (pressure-rated)
- Connections: Sanitary tri-clamp fittings throughout
- Frame Design: Heavy-duty stainless steel support frame
- Vacuum Capability: Full vacuum-compatible (for improved yields)
- System Dimensions (W × D × H): Approx. 48" × 24" × 72" (121.9 cm × 61 cm × 182.9 cm)
- System Weight: ~300 lbs (136 kg)
- Power Requirements: None (manual or pneumatic operation)
- Heating/Cooling: Compatible with external chillers and recovery pumps
- Recovery Pump Compatibility: Explosion-proof recovery pumps (optional)
- Control Type: Manual flow and valve operation; digital upgrades available
- Safety Features: Pressure relief valves, anti-corrosive materials, peer-reviewed designs available
- Certifications: ASME-rated components, optional Peer Review documentation
Key Features:
- Professional-Grade Extraction: Designed for licensed cannabis and hemp extraction labs.
- Closed-Loop System: Fully sealed design minimizes solvent loss and maximizes safety.
- Versatile Solvent Use: Operates with pure butane, propane, or custom blends.
- High Efficiency: Up to 99% solvent recovery for reduced operating costs.
- Sanitary Construction: Food-grade stainless steel and tri-clamp fittings throughout.
- Visual Process Control: Integrated sight glasses on critical components.
- Modular Expansion: Upgrade paths available for CRC filtration, jacketed vessels, or automation.
- Compliance-Ready: Supports regulatory inspections with optional certified documentation.
Ideal Applications:
- Cannabis and hemp hydrocarbon extraction
- Butane/propane extraction for live resin, shatter, wax, or diamonds
- Solvent-based botanical oil extraction
- Commercial extract production and post-processing
- Labs needing scalable, compliant extraction systems
