Product Specifications
Technical Specifications:

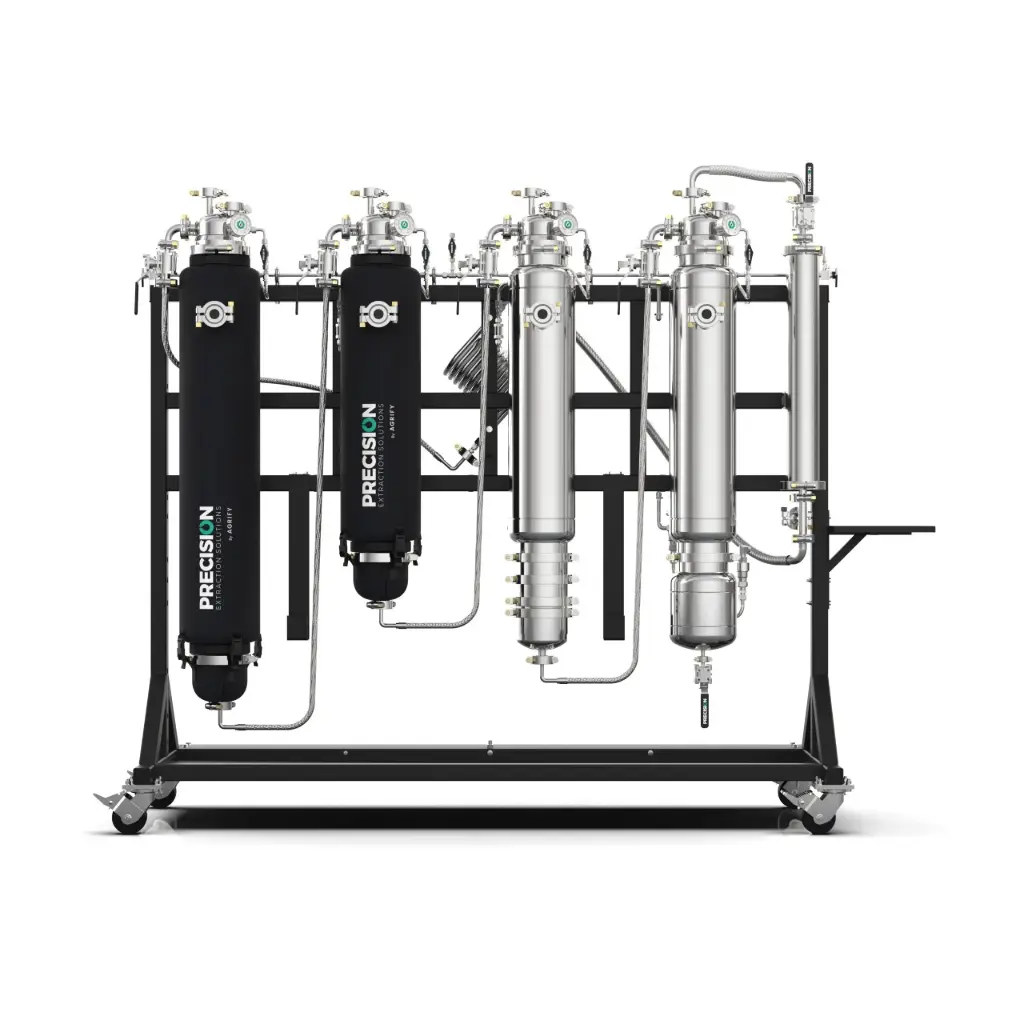

- Model: PX5 Hydrocarbon Extraction System
- Extraction Type: Closed-loop hydrocarbon extraction (BHO, PHO)
- Batch Capacity: Up to 5 lbs (2.27 kg) of biomass per run
- Solvent Compatibility: Butane, Propane, or custom blends
- Solvent Recovery Rate: Up to 99%
- Cycle Time: 30–45 minutes (dependent on biomass and configuration)
- Extraction Vessel: ASME-certified 6” diameter x 24” column
- Material Contact Surfaces: 304 & 316L stainless steel, electropolished
- Collection Vessel: Jacketed collection base with sight glasses and pour spout
- Inline Filtration: Removable filter plates and sock-style filtration
- Chilling Requirements: External chiller rated to -40°C or below
- Heating Requirements: External heater or hot water circulator
- Vacuum Requirements: External vacuum pump (deep vac capable)
- Pressure Rating: -30 inHg to 150 PSI
- Control System:
- Manual or semi-automated
- Pressure and temperature gauges
- Dimensions (W × D × H): Approx. 60" × 30" × 78" (152 cm × 76 cm × 198 cm)
- Weight: ~325 lbs (147 kg)
- Electrical Requirements: 120V, 60Hz (for accessories)
- Compliance:
- ASME Certified Vessels
- C1D1/C1D2 compliant configuration
Key Features:
- Scalable Capacity: Designed for small-to-mid-scale production environments
- Fast Turnaround: Short cycle times with high recovery efficiency
- Compact Footprint: Fits easily in extraction labs with limited space
- High Safety Standards: Built to meet strict hazardous location safety codes
- Modular Expansion: Easily integrates with CRC systems, chillers, ovens, or rotovaps
Ideal Applications:
- Extraction of cannabinoids and terpenes from cannabis or hemp
- Production of high-quality shatter, budder, wax, and live resin
- Solvent-based concentrate manufacturing
- Pre-processing for further refinement or distillation
- Pilot labs, boutique brands, and scaling extraction operations
