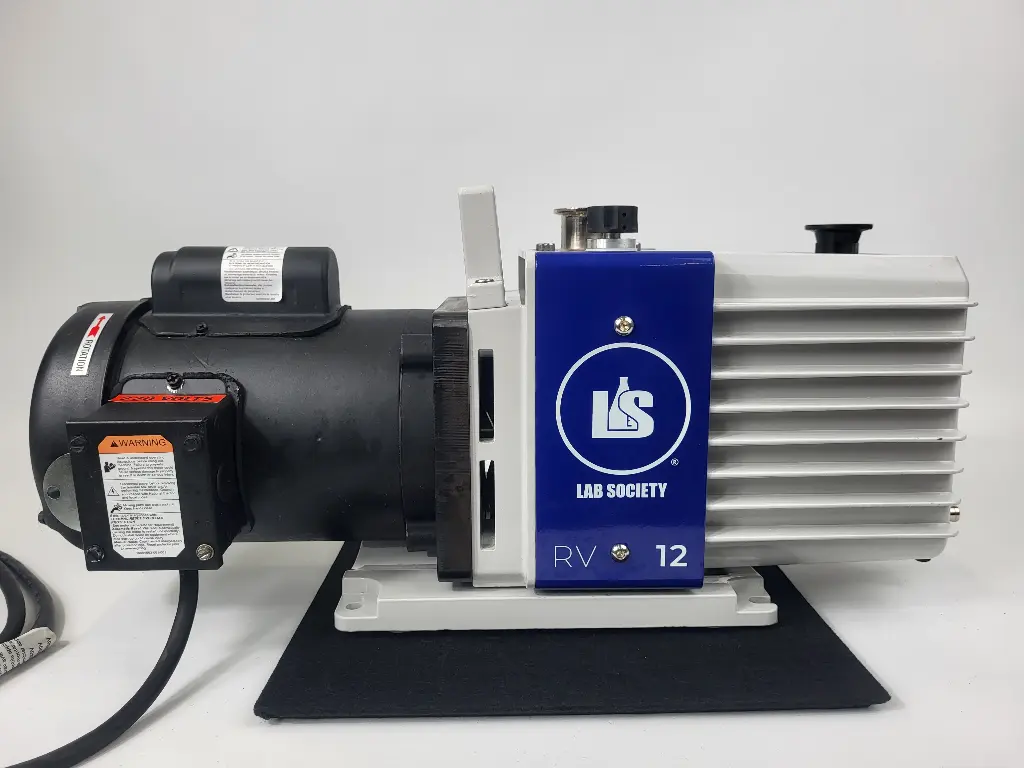

LS-RV-12-1 - Lab Society 2-Stage Rotary Vane Vacuum Pump (Pre-Owned)

Product Specifications

Technical Specifications:

• Model: LS-RV-12-1
• Pumping Speed: 12 m³/h (7.1 CFM)
• Ultimate Pressure:
  • With Gas Ballast Open: 4 x 10⁻² Torr
  • With Gas Ballast Closed: 4 x 10⁻³ Torr
• Oil Capacity: 0.55 to 1.0 Liters
• Inlet & Outlet Flange: KF-25
• Voltage Options: 115V or 220V
• Motor Power: 0.4 kW (0.5 HP)
• Dimensions (L × W × H): 22" × 10.5" × 6.5"
• Weight: 56 lbs (25.4 kg)
• Certifications: CSA, ETL​

Key Features:

• Oil Drain Valve: Facilitates easy draining and oil replacement.
• Gas Ballast: Helps expel harmful vapors, enhancing pump longevity.
• Anti-Suck-Back Protection: Prevents oil from entering the vacuum system during power loss.
• Advanced Pump Replacement Program: Offers support and replacements as needed.
• Compact Design: Space-saving footprint suitable for various laboratory environments.

Ideal Applications:

• Short Path Distillation
• Rotary Evaporation
• Freeze-Drying
• General Laboratory Vacuum Applications
• Industrial Processes Requiring Medium Vacuum Levels

Data Sheet Links
