Product Specifications
Technical Specifications:

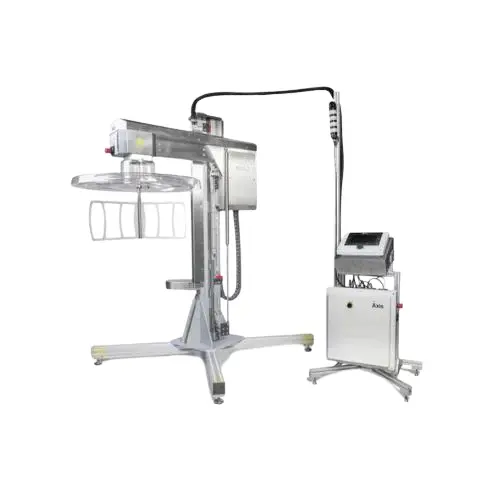

- Model: Axis Trichome Separator
- Processing Capacity: 10–20 lbs fresh-frozen material per batch (varies by cultivar and moisture content)
- Separation Method: Gentle agitation with automated ice water wash cycles
- Trichome Separation Type: Micron screen filtration (bags or integrated sieve system)
- Cycle Time: 15–30 minutes per wash (programmable)
- Wash Modes: Manual, Semi-Auto, Fully Automatic
- Wash Speed Settings: Multi-speed with programmable agitation intensity
- Material Compatibility: Fresh frozen or cured material
- Construction:
- Food-grade stainless steel (304) basin and hardware
- HDPE paddles and lids
- Powder-coated steel frame (rust resistant)
- Water Capacity: 30–40 gallons (with recirculation option)
- Drainage: 2" bottom port with tri-clamp fitting
- Control System: Digital touch screen with programmable timer, motor control, and safety lock
- Dimensions (W × D × H): 36" × 36" × 50" (91.4 cm × 91.4 cm × 127 cm)
- Weight: Approx. 175 lbs (79 kg)
- Motor: 1 HP variable-speed motor
- Electrical Requirements: 120 V, 60 Hz, single-phase (20 A dedicated circuit recommended)
- Safety Features:
- Lid lock during operation
- Overcurrent protection
- Emergency stop switch
- Certifications: CE and FDA food-safe compliant components
Key Features:
- Automated Trichome Separation: Programmable wash cycles with adjustable agitation and rest intervals.
- Precision Control: Touchscreen interface allows full customization for strain-specific processing.
- Food-Safe & Durable: All material-contact surfaces made from stainless steel and HDPE.
- Easy Cleanup: Quick-release clamps and sloped basin for fast draining and sanitization.
- Consistent Yield: Maintains trichome integrity while maximizing resin collection.
Ideal Applications:
- Ice water hash production
- Solventless extract processing labs
- Craft hash makers and commercial extractors
- Genetic and phenotype R&D facilities
- Rosin press pre-processing workflows
